BandEng - Band Engineering

BandEng is a program that allows for rapid prototyping of heterostructures. It is a one-dimensional Schrödinger-Poisson solver, and was originally designed for use with III-nitrides, though the materials file is easily expanded to include other material systems.

Download here.

Key Features:

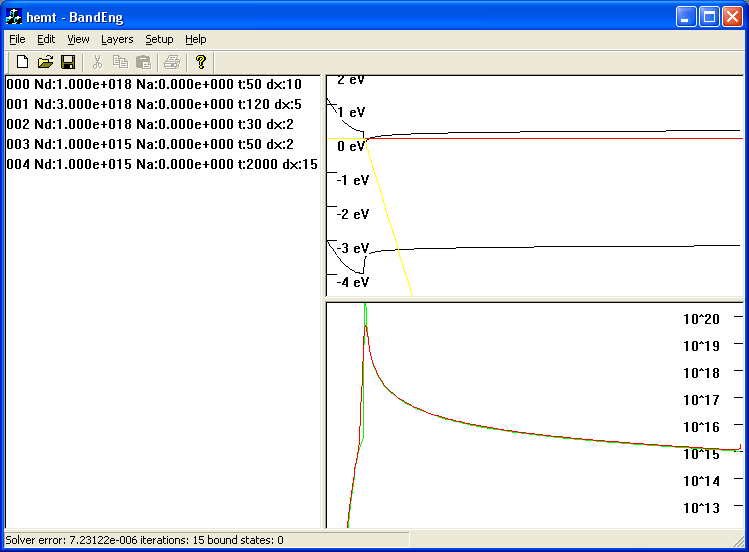

Here is a screenshot of the program in action:

A quick tutorial:

1. First load the included materials database file using Materials->Open...
2. Use Layers->New... to add a layer.  Note that "dx" is the grid spacing.  All thicknesses are in angstroms and the charge concentrations are in cm^-3.
3. Choose a material and doping.  Make sure you don't use zero for all dopings, or the solver will fail.  If you want no doping, use a very small number instead of zero.
4. Hit OK to add the layer, the band diagram should appear in the upper right corner.
5. The bottom of the screen shows important information.  The solver error should be less than 10e-5.  Additionally, you can find out local charge properties by dragging your cursor along the bottom right hand pane of the window.
6. Use File->Export... to export the band diagram into a file format that is easily readable by Excel, Origin, etc...
7. There is a lot more functionality, so play around.  The worst thing that can happen is a crash.

The program will have serious problems on some structures with large polarization charges - I'm still working on that.  (Update, if it's not converging, i.e. the number of iterations is the same as the max number of iterations, try playing with the setup->solver properties damping factor.  .9 usually helps...)

Note:

Note: as of 4/4/04 everything in the materials dialog is used.  If you use an older materials file, make sure that the deep donor/acceptor levels are correct for your purposes.

I added CV profiling from the left contact.  Look under Layers...  You need a "fixed" contact on the left to use this, otherwise it's just going to sit there and whirl away at nothing.  The output file is called cv.out.

There's no help with it (for now), but here's the basic rundown:

The program will solve Poisson's and Schrodinger's equations.  You can interactively edit the layer stack and view the band diagram on the right side.  Polarization is calculated in GaN/AlGaN systems.  Currently, there is very limited graphics support, and concentrations are calculated using the Boltzmann approximation - you have been warned (Update 7/5/03 now uses a modified Sommerfeld approximation for degenerate areas.)  Also, many menu options simply do not work under the materials database.  Feel free to update your database though, because future versions will use those data fields.  Also note that the status bar gives kind of bogus information right now.  The iterations are right, and that's about it.  It's all a work in progress of course...

New functionality (5/17/04): text import

File structure:

material_name x= Nd= Na= Ndd= Nda= relax= Efn= Efp= dx= t=

all above values are optional

Quadratic values are entered in constant,linear,quad terms (no spaces between commas and numbers.)

For example,
x=.2,.4 means that x=.2+.4y where y is the normalized position in the material (just like in the materials dialog)
you can omit the linear, or linear and quadratic terms if you choose

You can make nested repeated structures using:

repeat=5
(....) body
endrepeat

Here is an example:

GaN t=500 dx=10 Na=5e17
repeat=4
InGaN x=.2 t=50 dx=2
GaN t=50 dx=2 Nd=5e17
endrepeat
GaN t=500 dx=10 Nd=5e17

Have fun!

Please send me an email at mgrundmann at ece dot ucsb dot edu if you use this program.   I'm not smart enough to write a script to hide this effectively, so just reconstruct it.  I'd really like to know what it's being used for so I can make improvements in the future.  If you publish any diagrams that this program creates, please cite it somehow and/or contact me if you'd like a citation example.
